타이핑하세요 :: | 수압 펌프 | 애플리케이션 :: | 굴삭기 |
---|---|---|---|
펌프 유형 :: | 피스톤펌프 | 용법 :: | 유압 장비 |
특징 :: | 장수 | 연료:: | 디젤 |
펌프 위치 :: | 수평식 | 전송 매체 :: | 기름 펌프 |
하이 라이트: | 025RE11VU2 Rexroth Piston Pump,PGH5-21 Rexroth Piston Pump,025RE11VU2 Excavator Hydraulic Parts |

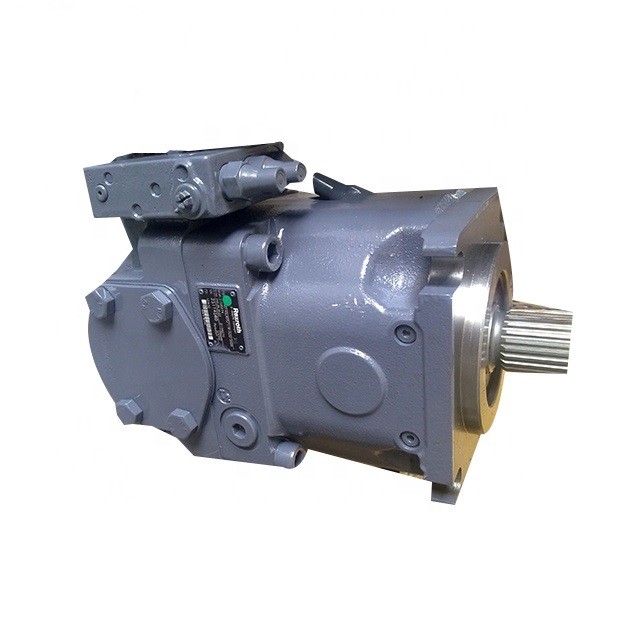

Hydraulic axial piston variable pump, low noise level, high efficiency, reliability; Axial and radial load capacity of drive shaft; favorable power/weight ratio, versatile controller range and short control response time.
Variable pump in axial piston swash plate design for hydrostatic drives in an open circuit, the flow is proportional to the drive speed and the displacement. The flow can be steplessly varied by adjustment of the swash plate angle.
The through drive is suitable for adding gear pumps and axial piston pumps up to the same size, i.e., 100% through drive.
Two case drain ports, excellent suction characteristics, low noise level, long service life, axial and radial load capacity of drive shaft, favorable power/weight range, short control time.
Size (Displacement)
|
18
|
28
|
45
|
71
|
100
|
140
|
Flow L/Min (rated speed)
|
59
|
84
|
117
|
156
|
200
|
252
|
Weight Approx KG
|
12
|
15
|
21
|
33
|
45
|
60
|
